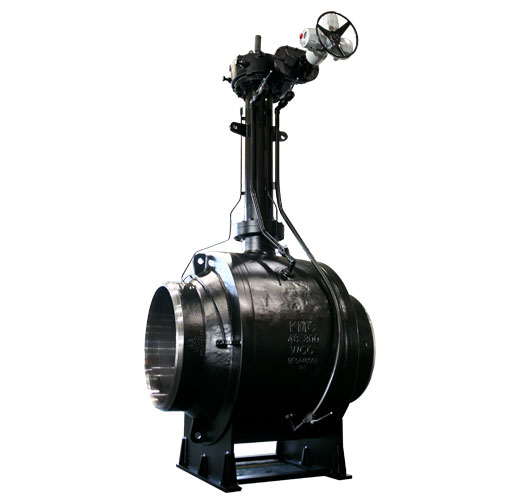

API 6D Fully Welded Ball Valve
| Model | B1AP |
|---|---|
| Size | 2"~ 48"(DN50 ~ DN1200) |
| Pressure | ASME Class 150 ~ 2500 |
| Bore | Full bore, Reduced bore |
| End connection | Butt weld or RF, RTJ |
| Operator | Lever, Gear, Electric, Pneumatic, Hydraulic actuator |
| Working temperature | -60 ~ +200℃ |
| Type | Above ground/Under ground |
| etc | Seat tightness class A, Epoxy paint |
