제품소개

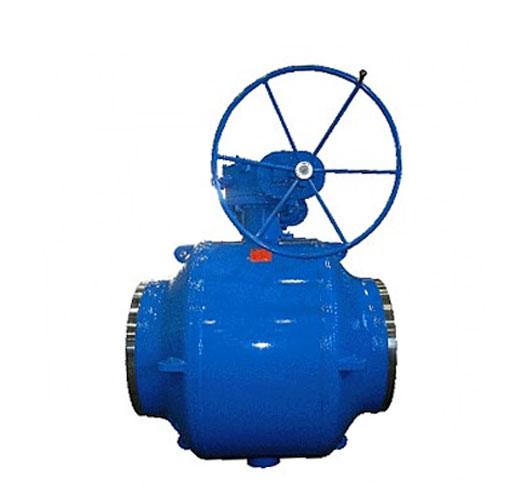

Fully Welded Ball Valve

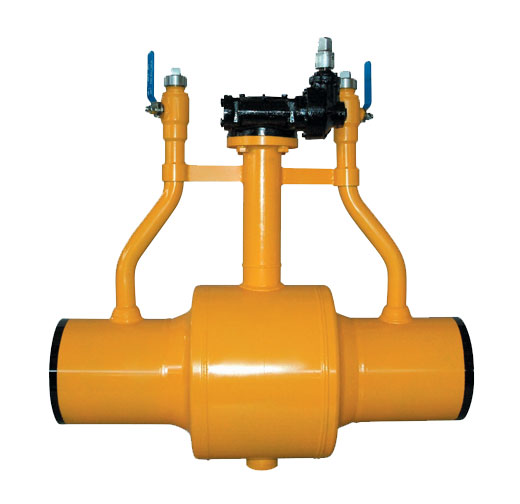

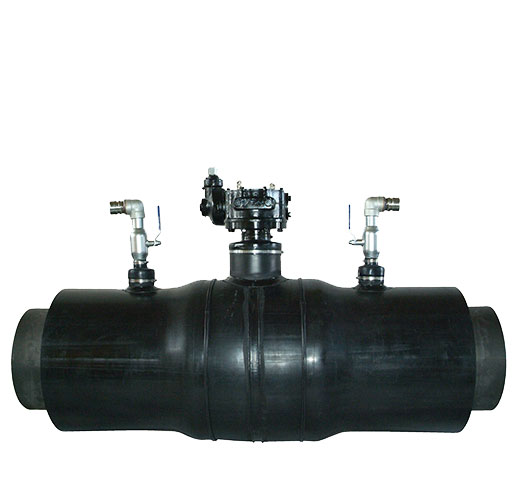

도시가스 매몰용접형

Model	B1UG
Size	2” ~ 24”(DN50 ~ DN600)
Pressure	2.0 Mpa/PN25
Bore	Full bore, Reduced bore
End connection	Butt weld
Operator	T-handle, Gear, Electric actuator
Working temperature	-29℃ ~ +200℃
Purge type	1 Purge, 2 Purge
etc	Seat tightness class" A", FRP Coating

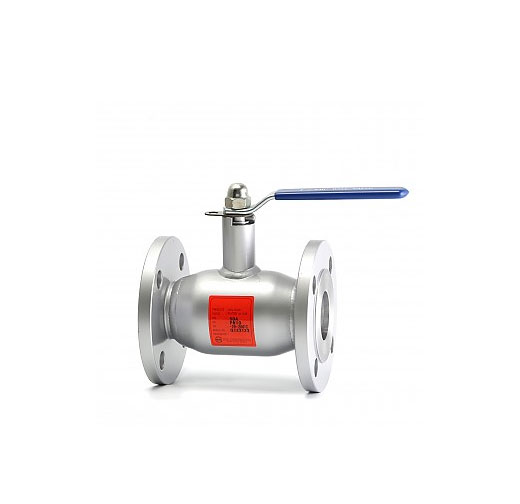

도시가스 입상배관용

Model		B1NG / B1BS
Material	Body	A53, SPPS250, STPG370, STS304TP
	Ball	304SS, STS304
	Seat	R-PTFE, Devlon 등
Size		1/2"~ 48"(DN15 ~ DN1200)
Pressure		10K(PN16) ~ 30K(PN40)
Pressure		ANSI Class 150 ~ 600
Operator		Lever, Gear, Electric, Pneumatic, Hydraulic actuator
Working temperature		-29℃ ~ +200℃
Flange		KS, DIN, ANSI, B16.5
etc		Seat tightness class” A”, Epoxy paint

MANUALACTUATOR

10K
20K
10K
20K

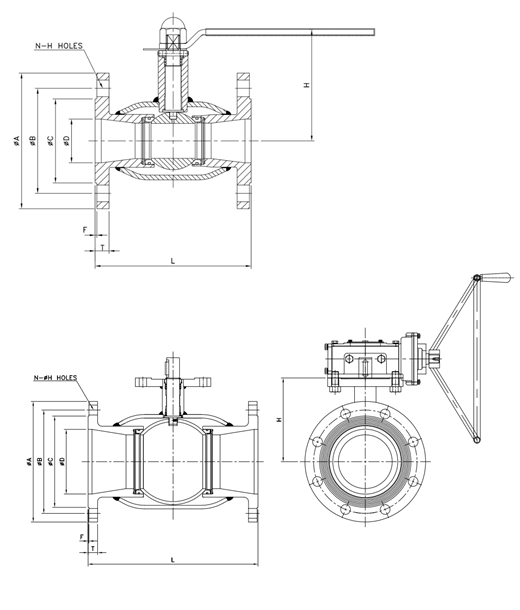

Standard Manual Type Ball Valves 10K

Regular Bore Lever Type
SIZE	A	B	C	D	F	T	L	H	N-H	Model
DN15	95	70	51	15	1	12	108	91.8	4-Ø15	B1NG15
DN20	100	75	56	20	1	14	117	91.9	4-Ø15	B1NG20
DN25	125	90	67	25	1	14	127	104.8	4-Ø19	B1NG25
DN32	135	100	76	32	2	16	140	108.8	4-Ø19	B1NG32
DN40	140	105	81	40	2	16	165	104.8	4-Ø19	B1NG40
DN50	155	120	96	50	2	16	178	110	4-Ø19	B1NG50
DN65	175	140	116	65	2	18	190	177.3	4-Ø19	B1NG65
DN80	185	150	126	80	2	18	203	186.1	8-Ø19	B1NG80
DN100	210	175	151	100	2	18	229	212.1	8-Ø19	B1NG100
DN125	250	210	182	125	2	20	356	229	8-Ø23	B1NG125
DN150	280	240	212	150	2	22	394	220	8-Ø23	B1NG150
Regular Bore Gear Type
DN200	330	290	262	200	2	22	457	207.7	12-Ø23	B1NG200
DN250	400	355	324	250	2	24	533	302	12-Ø25	B1NG250
DN300	445	400	368	300	3	24	610	336.6	16-Ø25	B1NG300
DN350	490	445	413	350	3	26	686	426	16-Ø25	B1NG350
DN400	560	510	475	400	3	28	762	417	16-Ø27	B1NG400

Standard Manual Type Ball Valves 20K

Regular Bore Lever Type
SIZE	A	B	C	D	F	T	L	H	N-H	Model
DN15	95	70	51	15	1	14	140	91.8	4-Ø15	B1NG15
DN20	100	75	56	20	1	16	152	91.9	4-Ø15	B1NG20
DN25	125	90	67	25	1	16	165	104.8	4-Ø19	B1NG25
DN32	135	100	76	32	2	18	178	108.8	4-Ø19	B1NG32
DN40	140	105	81	40	2	18	190	121.8	4-Ø19	B1NG40
DN50	155	120	96	50	2	18	216	127.3	8-Ø19	B1NG50
DN65	175	140	116	65	2	20	421	177.3	8-Ø19	B1NG65
DN80	200	160	132	80	2	22	283	186.1	8-Ø23	B1NG80
DN100	225	185	160	100	2	24	305	212.1	8-Ø23	B1NG100
DN125	270	225	195	125	2	26	381	229	8-Ø25	B1NG125
DN150	305	260	230	150	2	28	403	250	12-Ø25	B1NG150
Regular Bore Gear Type
DN200	350	305	275	200	2	30	502	207.7	12-Ø25	B1NG200
DN250	430	380	345	250	2	34	568	256.8	12-Ø27	B1NG250
DN300	480	430	395	300	3	36	648	336.6	16-Ø27	B1NG300
DN350	540	480	440	350	3	40	762	426	16-Ø33	B1NG350
DN400	605	540	495	400	3	46	838	417	16-Ø33	B1NG400

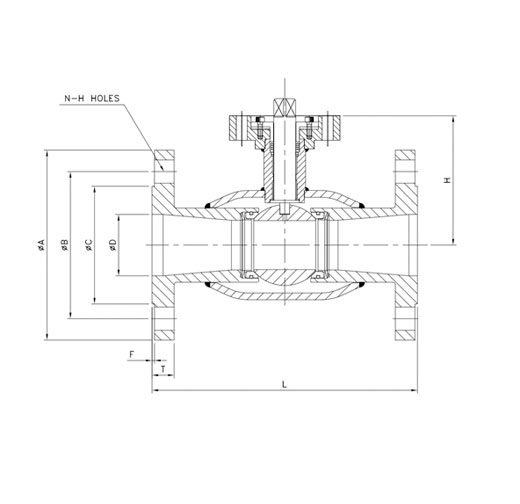

Standard Actuator Type Ball Valves 10K

Regular Bore
SIZE	A	B	C	D	F	T	L	H	N-H	Model
DN15	95	70	51	15	1	12	108	73.3	4-Ø15	B1BS15
DN20	100	75	56	20	1	14	117	75.8	4-Ø15	B1BS20
DN25	125	90	67	25	1	14	127	90	4-Ø19	B1BS25
DN32	135	100	76	32	2	16	140	93.5	4-Ø19	B1BS32
DN40	140	105	81	40	2	16	165	98.5	4-Ø19	B1BS40
DN50	155	120	96	50	2	16	178	105.5	4-Ø19	B1BS50
DN65	175	140	116	65	2	18	190	126.5	4-Ø19	B1BS65
DN80	185	150	126	80	2	18	203	137.5	8-Ø19	B1BS80
DN100	210	175	151	100	2	18	229	188.5	8-Ø19	B1BS100
DN125	250	210	182	125	2	20	356	206	8-Ø23	B1BS125
DN150	280	240	212	150	2	22	394	262	8-Ø23	B1BS150
DN200	330	290	262	200	2	22	457	275	12-Ø23	B1BS200
DN250	400	355	324	250	2	24	533	355	12-Ø25	B1BS250
DN300	445	400	368	300	3	24	610	392.5	16-Ø25	B1BS300
DN350	490	445	413	350	3	26	686	426	16-Ø25	B1BS350
DN400	560	510	475	400	3	28	762	417	16-Ø27	B1BS400

Standard Actuator Type Ball Valves 20K

Regular Bore
SIZE	A	B	C	D	F	T	L	H	Model
DN15	95	70	51	15	1	14	140	73.3	B1BS15
DN20	100	75	56	20	1	16	152	75.8	B1BS20
DN25	125	90	67	25	1	16	165	90	B1BS25
DN32	135	100	76	32	2	18	178	93.5	B1BS32
DN40	140	105	81	40	2	18	190	98.5	B1BS40
DN50	155	120	96	50	2	18	216	105.5	B1BS50
DN65	175	140	116	65	2	20	421	126.5	B1BS65
DN80	200	160	132	80	2	22	283	137.5	B1BS80
DN100	225	185	160	100	2	24	305	188.5	B1BS100
DN125	270	225	195	125	2	26	381	206	B1BS125
DN150	305	260	230	150	2	28	403	262	B1BS150
DN200	350	305	275	200	2	30	502	275	B1BS200
DN250	430	380	345	250	2	34	568	355	B1BS250
DN300	480	430	395	300	3	36	648	392.5	B1BS300
DN350	540	480	440	350	3	40	762	426	B1BS350
DN400	605	540	495	400	3	46	838	417	B1BS400
